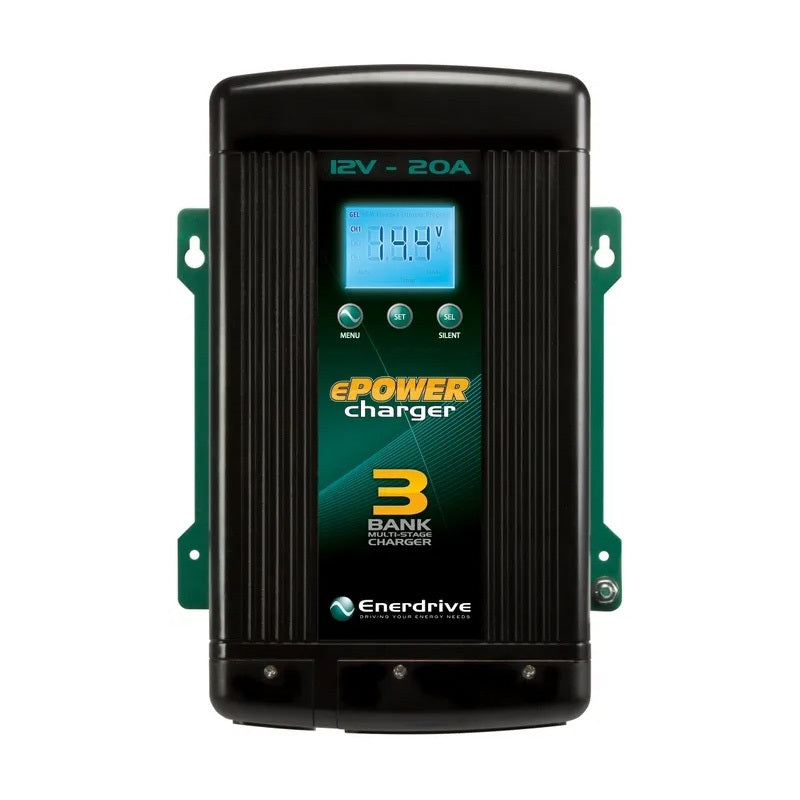

The Enerdrive ePOWER Smart Charger 3-Output 12V/20A is a fully automatic multistage 20A battery charger with the ability to charge 3 separate battery banks.

The isolated charging design where battery bank one is separate from battery bank two and three. You can now programme bank 1 with a different charge algorithm over banks 2 and 3.

The smart charging at its finest, the ePOWER 20A battery charger will regulate its output based on the loads connected to your battery banks.

And the convenient silent mode, disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.

Benefits & Features*

• Easy to use “set and select” menu along with scrolling charger status

• Separate battery banks

• Programmable battery banks

• User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator)

• Smart charging

• Wide AC input range: Operates on both 110V / 60Hz and 240V / 50Hz.

• LED display

• Silent mode

• Temperature sensor

• Battery temperature sensor included with 3 meter cable

• AC Input connection: IEC with supplied 1.2m power lead

• DC Output connection: Heavy duty terminal (3 banks)

• DC Output ground: Single heavy duty common ground stud

• Dimensions: 206mm(w) x 295mm(l) x 86mm(h)

• Weight: 2.4kg

• Warranty: 5 Years

Specifications

• Output Current: 20A

• Output Voltage Range(Charging): 14.2 - 15.5V

• AC Input Voltage: 90 - 265V

• Frequency: 47 - 63 Hz

• Charger Efficiency: >82%

• Charging Control: Four Stage, Two Stage, Constant, Priority
