• Advanced MPPT technology & ultra-fast tracking speed guarantee’s tracking efficiency up to 99.5%
• Maximum DC/DC transfer efficiency is as high as 98.6%.
• Advanced MPPT control algorithm to minimize the MPP lost rate and lost time

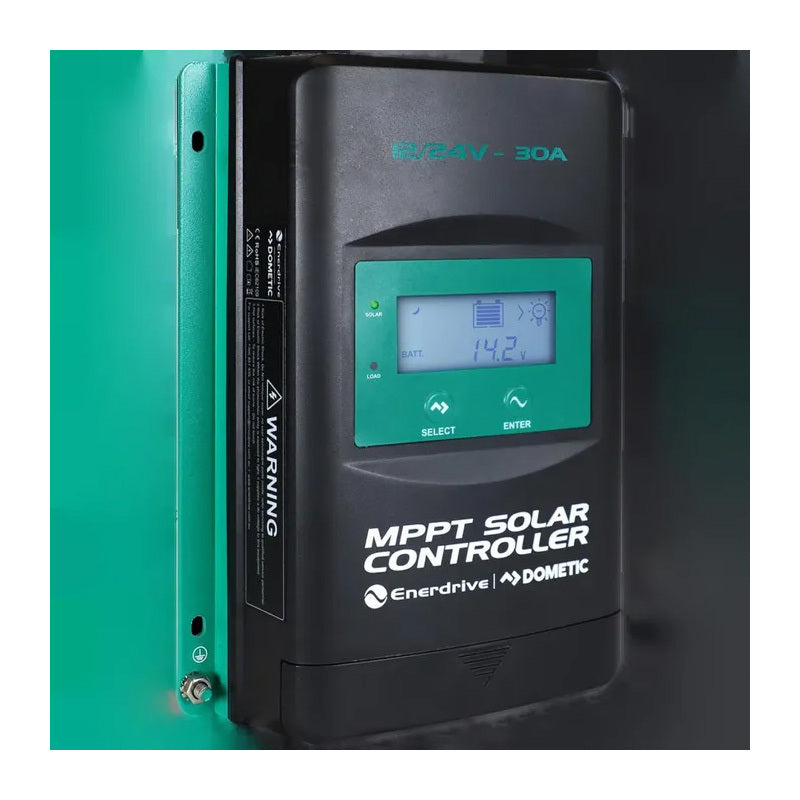

The Enerdrive MPPT Solar Controller 12-24V/30A adopt the advanced MPPT control algorithm and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method

• Dimensions: 165mm(w) x 230mm(l) x 63mm(h)
• Dimensions - Mounting hole : 173mm x 156mm
• Warranty: 5 Years
• Nominal voltage range: 12/24vdc auto select
• Battery voltage range: 8 ~ 32V
• Maximum battery current output: 30A
• Maximum load current output: 30A
• LCD display
• Accurate recognition and tracking of multi-peaks maximum power point
• Wide MPP operating voltage range
• Support lead-acid and lithium batteries
• Real-time energy statistics function
• Power reduction automatically over temperature value
• Multiple load work modes
• Comprehensive electronic protection
• Comms port included for future applications
• IP33 Ingress protection
• IP Rating: IP33

Click here for User Manual
