• Protective bumpers protect the bike from impacts with the bike carrier structure
• Quick lock allows for quick and safe locking of the wheel to the rail and the Bike-Block securely locks the bike
• By holding the top of the bike rack and pivoting the carrier away from the caravan it is possible to open the storage compartment even with the bikes mounted

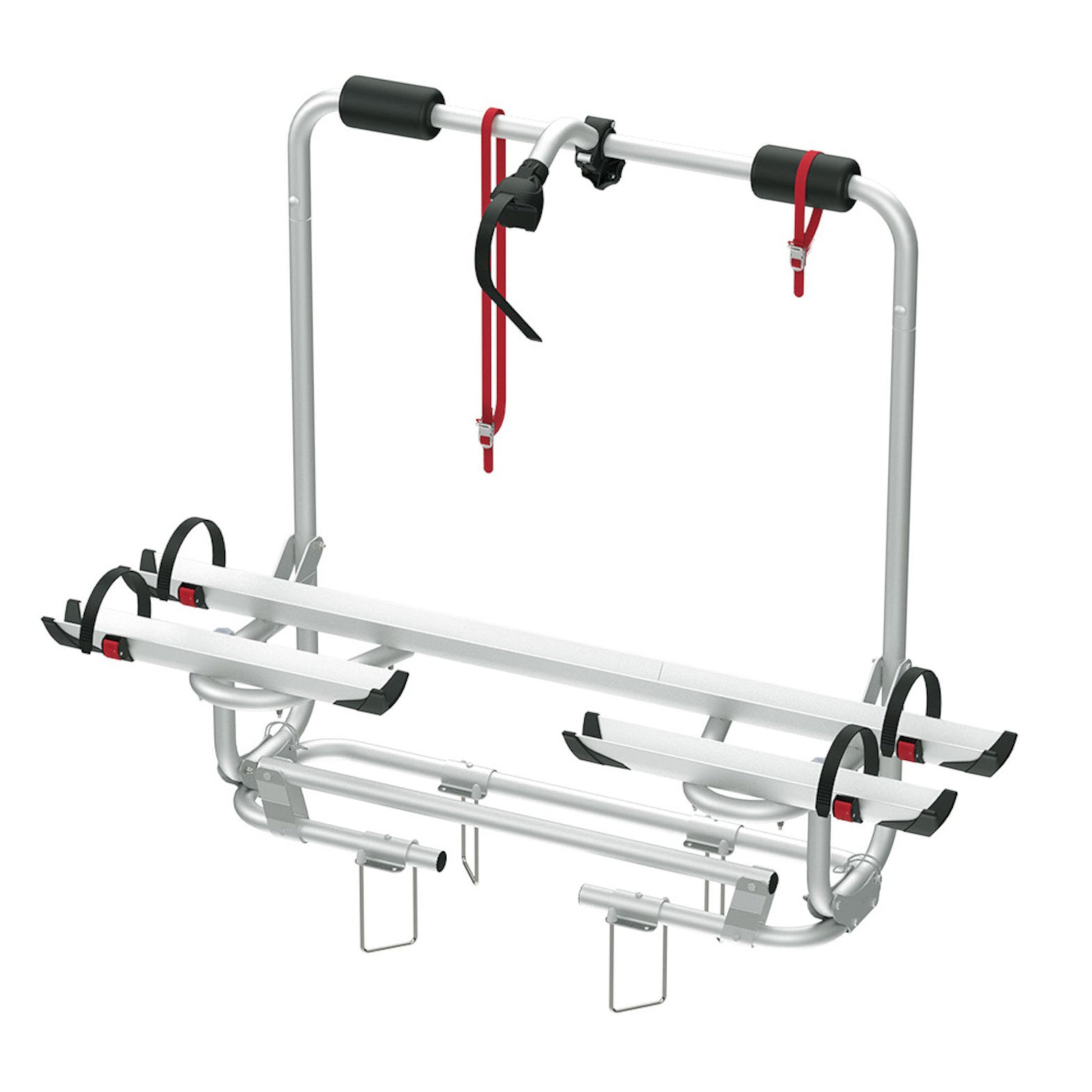

Ensure you bikes remain safe while on your way to your outdoor destination with the Fiamma Cary-Bike Caravan XLA Pro 200 which is designed for installation on the front of caravans on standard A-frame without the need to drill holes

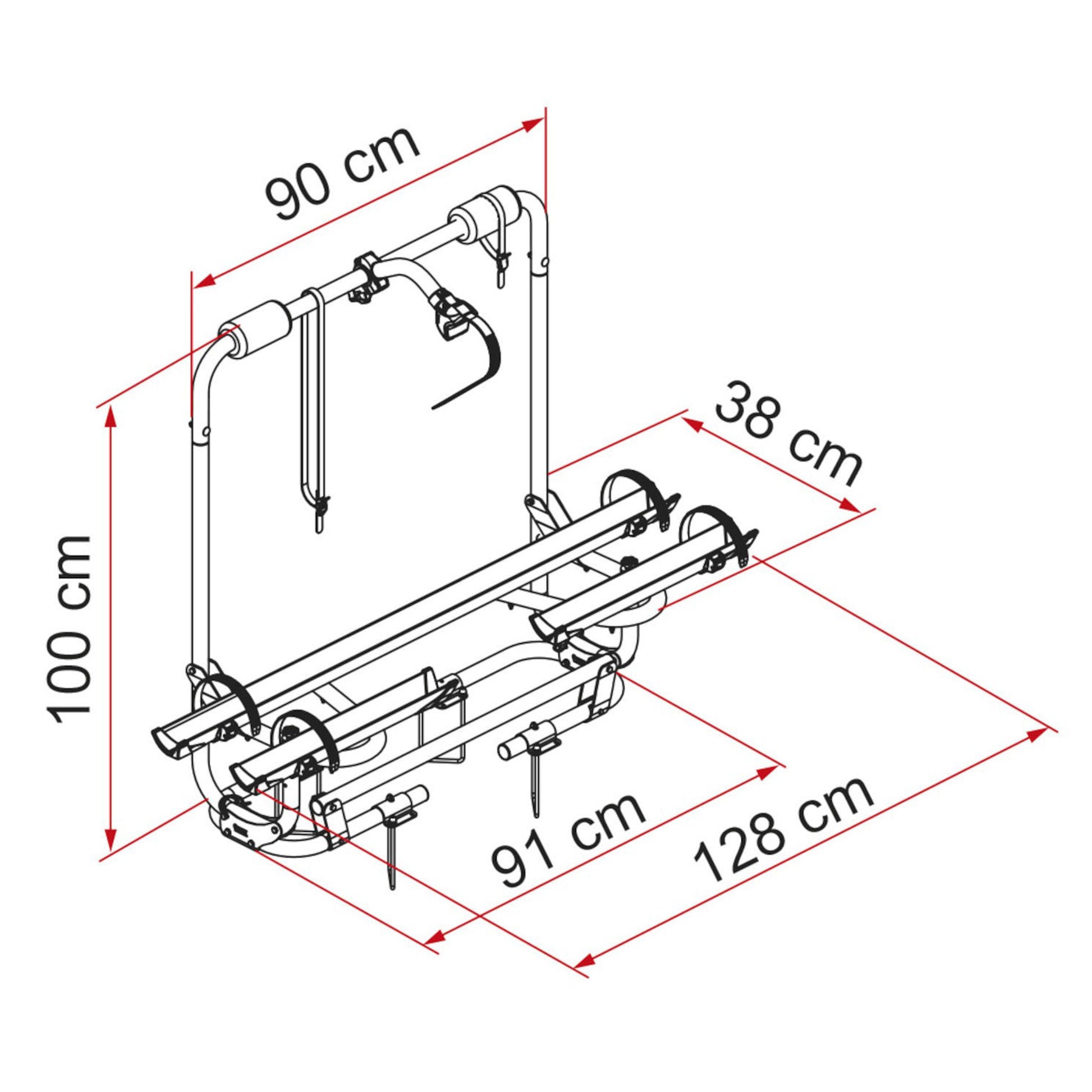

• Dimensions: for all dimensions please refer to photo 2
• Weight: 9.4kg
• Warranty:
• Maximum Load: 50kg

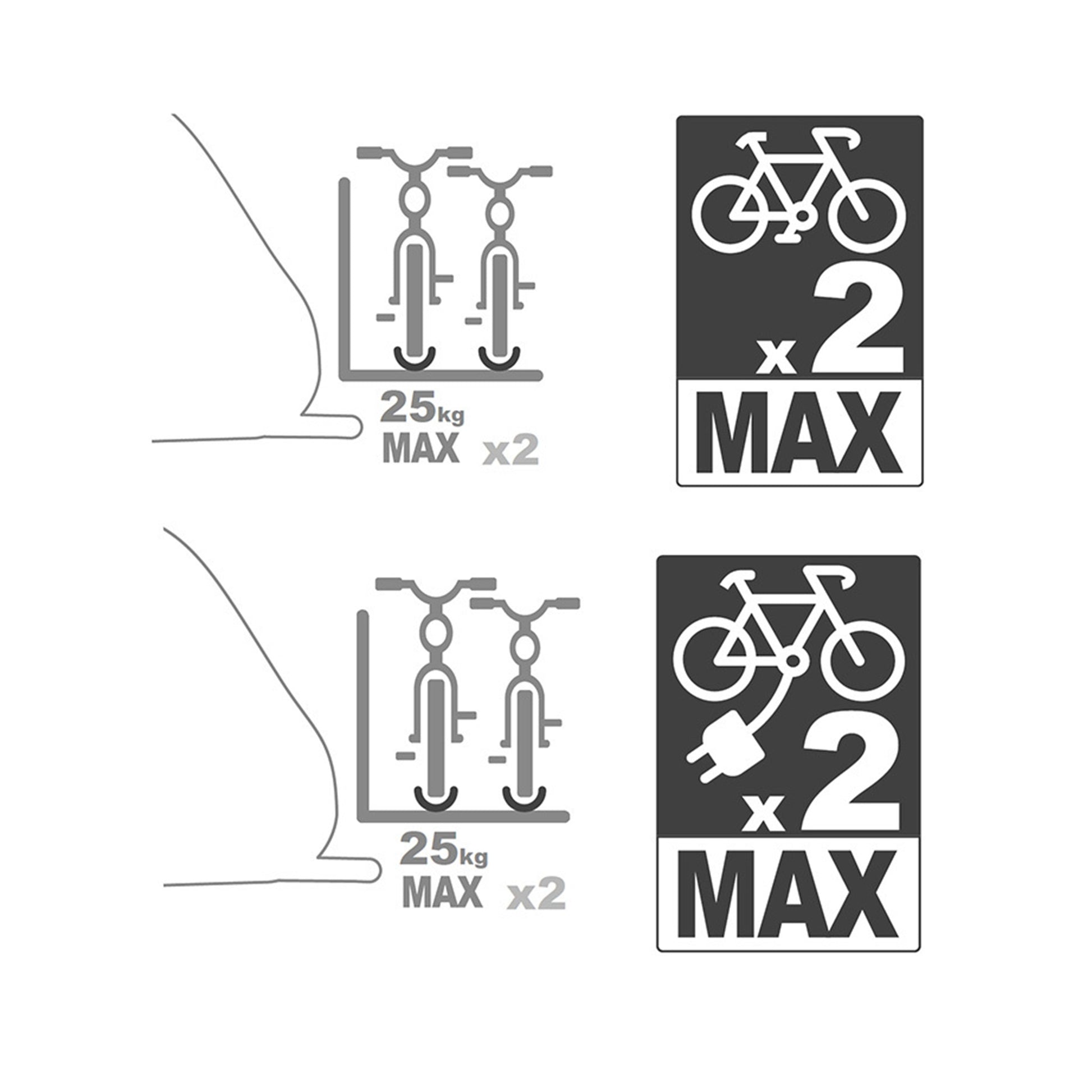

• Maximum Bikes: 2 Standard bikes or 2 E-Bikes
• Rear rails offset: 13.5cm
• The rear rail offset is the measurement from the furthest forward part of the bike carrier which fits tot he carrier frame, to the centre of the bike rail nearest the caravan. Add this to the measurement from the centre line of your bike to the edge of the pedals to see if this bike carrier will fit your caravan

PLEASE NOTE: If carrying E-Bikes, it is advisable to remove the batteries from bicycles, before loading them on the Carry-Bike while traveling

Click here for Installation & Operating Manual
