• Can support lead acid deep cycle and LiFePO4 batteries with multi-stage charging, ensuring optimal performance and battery protection
• Includes overload and short circuit protection, automatically protecting the system from damage
• Constructed with tough ABS housing and upgraded aluminium heat sinks, this durable solar regulator is built to last

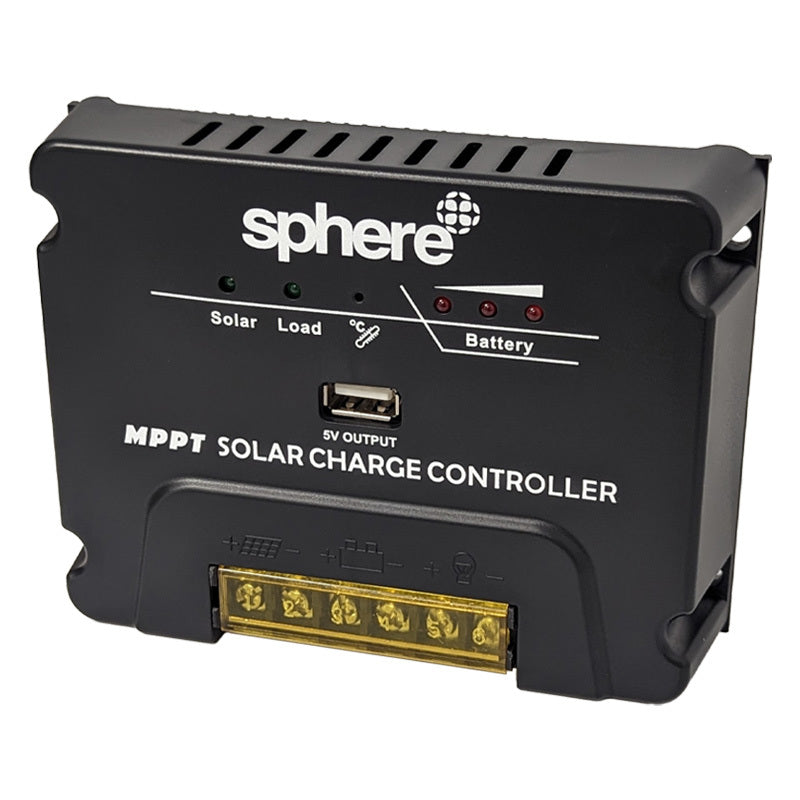

The ultimate solution for optimal solar energy conversion, the Sphere MPPT Solar Controller 12-24V/20A has innovative MPPT technology allows for rapid tracking and capture of the maximum power point of multi-wave peaks, resulting in an impressive 94% energy conversion efficiency - higher than 75% of PWM solar controllers

• Dimensions: 131mm(l) x 99.5mm(w) x 29.5mm(h)
• Weight: 300g
• Rated Charge Current: 20A
• Rated Voltage: 12V/24V
• MPPT Effciency: Max:99%
• Over Load, Short Circuit Protection: ≥1 .5 rated current
• No Load Current: ＜10mA
• USB Output: 5V 1A
• Working Temperature: -35℃~+55℃
• MPPT technology
• Low power consumption
